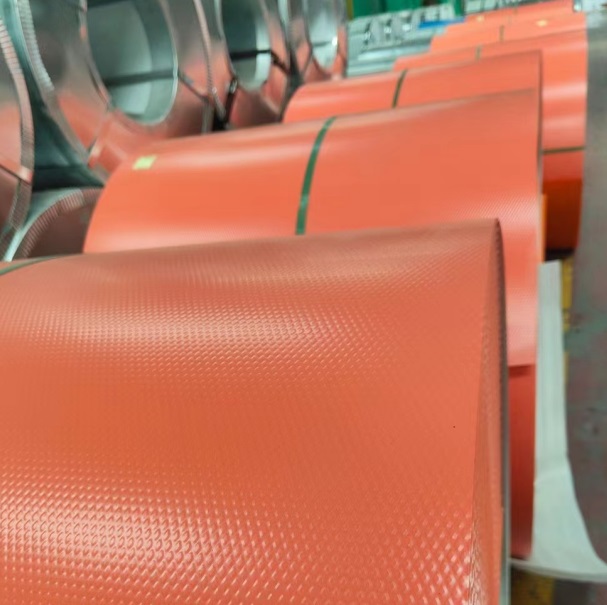

Painted Aluminum Sheets: Comprehensive Product Introduction

Overview

Painted aluminum sheets are premium-quality materials that combine the strength and lightweight properties of aluminum with a durable, vibrant paint finish. These sheets are ideal for a wide range of applications, including architectural, automotive, signage, and decorative projects, offering both aesthetic appeal and functional benefits.

Product Characteristics

Durable Finish

Painted aluminum sheets feature a high-quality paint coating that provides excellent resistance to weather, UV rays, and corrosion. This ensures a long-lasting, vibrant appearance and reduces the need for frequent maintenance.

Lightweight and Strong

The inherent properties of aluminum make these sheets lightweight yet strong, making them easy to handle, transport, and install. Their strength ensures durability in a variety of applications.

Aesthetic Versatility

Available in a wide range of colors and finishes, painted aluminum sheets offer versatility in design. Whether for architectural cladding or decorative elements, these sheets can enhance the visual appeal of any project.

Easy Fabrication

Painted aluminum sheets can be easily cut, bent, and shaped to meet specific design requirements. This flexibility allows for precise customization and ensures a perfect fit for various applications.

Environmentally Friendly

Aluminum is a recyclable material, and painted aluminum sheets contribute to sustainable building practices. The recycling process is energy-efficient, making these sheets an eco-friendly choice.

Product Parameters

Thickness

• Commonly available thicknesses: 0.024″ (0.6mm), 0.032″ (0.8mm), 0.040″ (1.0mm), 0.063″ (1.6mm)
• Custom thicknesses available upon request

Length and Width

• Standard sizes: 4’x8′ (1220mm x 2440mm), 4’x10′ (1220mm x 3048mm)
• Custom dimensions can be provided to suit specific project needs

Commonly Used States (Temper)

• H14: Strain-hardened, partially annealed
• H24: Strain-hardened, partially annealed with increased strength
• H32: Strain-hardened, 1/4 hard
• T6: Solution heat-treated and artificially aged for higher strength

Chemical Composition (Example for 3003 Aluminum Alloy)

• Aluminum (Al): 96.7-99.0%
• Manganese (Mn): 1.0-1.5%
• Copper (Cu): 0.05-0.20%
• Silicon (Si): 0.6% max
• Iron (Fe): 0.7% max

Mechanical Properties (Example for 3003-H14)

• Tensile Strength: 140-180 MPa
• Yield Strength: 125 MPa
• Elongation: 10-15%
• Hardness: 40 Brinell

Applications

• Architectural Cladding: Ideal for building facades and exterior panels, providing a durable and attractive finish.
• Automotive: Used in trim and accessory components, offering a vibrant and durable solution.
• Signage: Suitable for outdoor and indoor signs, offering excellent durability and a wide range of color options.
• Decorative Projects: Perfect for artistic installations, interior design elements, and furniture, providing aesthetic versatility.

Conclusion

Painted aluminum sheets are an excellent choice for applications requiring both aesthetic appeal and durability. Their lightweight nature, combined with excellent resistance to corrosion and a variety of vibrant finishes, makes them suitable for a wide range of projects. With customizable thicknesses, sizes, and colors, painted aluminum sheets can meet the specific needs of any application, ensuring both functionality and visual appeal.
