Overview

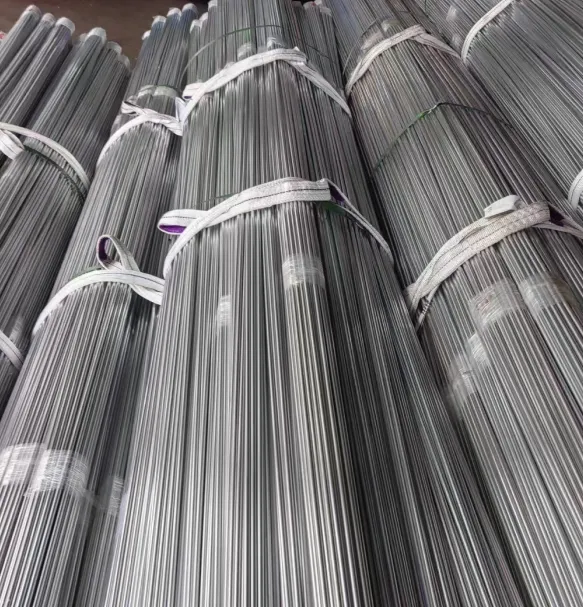

5183 aluminum welding wire is a high-strength, corrosion-resistant alloy widely used in marine, automotive, and industrial applications. Known for its excellent welding characteristics and resistance to saltwater corrosion, 5183 aluminum welding wire is the preferred material for projects requiring durable, lightweight, and reliable performance in harsh environments. Its superior strength and formability make it ideal for both structural and fabrication applications.

Product Characteristics

• Superior Corrosion Resistance: 5183 aluminum welding wire offers outstanding resistance to atmospheric and marine environments, making it ideal for coastal and offshore applications.
• High Strength: This alloy provides a strong balance of tensile and yield strength, ensuring robust and durable welds.
• Excellent Weldability: 5183 aluminum welding wire produces clean, consistent welds with minimal defects, ensuring strong joints and efficient fabrication processes.
• Versatility: Suitable for a wide range of applications, including welding 5xxx and 6xxx series aluminum alloys.
• Enhanced Performance: The wire offers excellent mechanical properties, ensuring reliable performance in high-stress environments.

Product Parameters

1. Diameter:

• Available in a range of diameters from 0.8 mm to 5.0 mm, catering to various welding requirements.

2. Length:

• Standard lengths vary based on the packaging, with options for spools, coils, and cut lengths to suit specific needs.

3. Width:

• Not applicable for welding wire.

4. Commonly Used States:

• Supplied in wire form, typically on spools or in coils, ready for welding applications.

5. Chemical Composition:

• Aluminum (Al): Balance
• Magnesium (Mg): 4.3-5.2%
• Manganese (Mn): 0.50-1.0%
• Iron (Fe): 0.40% max
• Silicon (Si): 0.40% max
• Copper (Cu): 0.10% max
• Chromium (Cr): 0.05-0.25%
• Zinc (Zn): 0.25% max
• Titanium (Ti): 0.15% max
• Other Elements: 0.05% max (each), 0.15% max (total)

6. Mechanical Properties (Example for Welds using 5183 Aluminum Wire):

• Tensile Strength: 47,000 psi (325 MPa)
• Yield Strength: 37,000 psi (255 MPa)
• Elongation: 12-15%
• Hardness (Brinell): 80 HB
• Density: 2.66 g/cm³

Applications

• Marine: Welding boat hulls, decks, and structural components.
• Automotive: Welding body panels, fuel tanks, and structural parts.
• Construction: Welding structural supports, frameworks, and cladding.
• Industrial: Welding pressure vessels, pipelines, and storage tanks.
• Consumer Goods: Welding appliances, hardware, and outdoor equipment.

Conclusion

5183 aluminum welding wire from kunxin aluminum company is engineered to meet the highest standards of quality and performance. Its exceptional corrosion resistance, strength, and weldability make it the preferred choice for a wide range of industrial and marine applications. With customizable sizes and packaging options, we ensure that you get the perfect welding wire to meet your specific needs. Contact us today to learn more about our 5183 aluminum welding wire and how it can enhance your projects.
