Aluminum Diamond Plate: Comprehensive Product Introduction

Overview

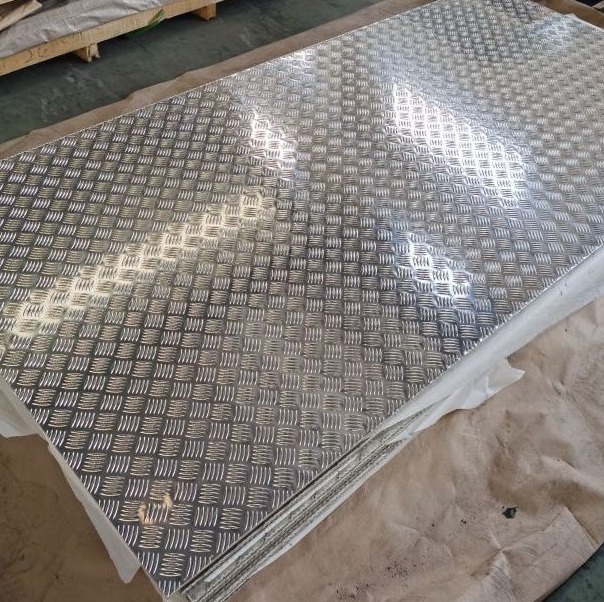

Aluminum diamond plate, also known as tread plate or checker plate, is a highly durable and versatile material characterized by its raised diamond-shaped pattern. This pattern not only enhances its aesthetic appeal but also provides excellent slip resistance, making it ideal for a wide range of applications, including flooring, wall protection, and vehicle interiors. The aluminum diamond plate is commonly used in industrial, commercial, and residential settings due to its strength, lightweight nature, and corrosion resistance.

Product Characteristics

Slip-Resistant Surface

The raised diamond pattern on the surface of the aluminum diamond plate provides exceptional slip resistance, making it a safe choice for areas prone to heavy foot traffic, moisture, or oil exposure.

Durability and Strength

Aluminum diamond plate is known for its durability and ability to withstand heavy loads and harsh conditions. It resists wear and tear, making it suitable for both indoor and outdoor applications.

Lightweight

Despite its strength and durability, aluminum diamond plate is lightweight, which makes it easy to handle, transport, and install. This characteristic is particularly beneficial in applications where reducing weight is essential, such as in vehicles and trailers.

Corrosion Resistance

Aluminum naturally resists corrosion, ensuring that the diamond plate maintains its integrity and appearance over time, even in environments exposed to moisture, chemicals, and extreme temperatures.

Easy Fabrication

The aluminum diamond plate is easy to cut, drill, and form, allowing for precise customization to meet specific project requirements. Its workability makes it suitable for a wide range of applications.

Aesthetic Appeal

The bright, reflective surface of the aluminum diamond plate adds a polished, professional look to any project. It is often used decoratively in various settings, adding both function and style.

Product Parameters

Thickness

• Commonly available thicknesses: 1/8″ (3.175mm), 3/16″ (4.76mm), 1/4″ (6.35mm)
• Custom thicknesses available upon request

Length and Width

• Standard sizes: 4’x8′ (1220mm x 2440mm), 5’x10′ (1524mm x 3048mm)
• Custom dimensions available to suit specific needs

Commonly Used States (Temper)

• H22: Partially annealed for improved ductility
• H24: Strain-hardened and partially annealed
• H32: Strain-hardened, 1/4 hard

Chemical Composition (Example for 3003 Aluminum Alloy)

• Aluminum (Al): 96.7-99.0%
• Manganese (Mn): 1.0-1.5%
• Copper (Cu): 0.05-0.20%
• Silicon (Si): 0.6% max
• Iron (Fe): 0.7% max

Mechanical Properties (Example for 3003-H22)

• Tensile Strength: 130-160 MPa
• Yield Strength: 90 MPa
• Elongation: 10-15%
• Hardness: 40 Brinell

Applications

• Industrial Flooring: Provides a durable, slip-resistant surface ideal for factories, warehouses, and loading docks.
• Vehicle Interiors: Commonly used in truck beds, trailers, and cargo vans for added protection and grip.
• Commercial Spaces: Suitable for ramps, stairs, and other high-traffic areas where safety is a priority.
• Residential Uses: Adds a durable and stylish finish to home garages, workshops, and storage areas.
• Decorative Features: Used in interior design, signage, and architectural elements for both function and visual appeal.

Conclusion

Aluminum diamond plate is a versatile and durable material that offers both functional and aesthetic benefits. Its lightweight, corrosion-resistant properties, combined with the slip-resistant diamond pattern, make it an ideal choice for a wide range of applications. With customizable options in thickness, size, and temper, aluminum diamond plate can meet the specific needs of any project, ensuring both safety and style.
