4×8 Aluminum Checker Plate: Comprehensive Product Introduction

Overview

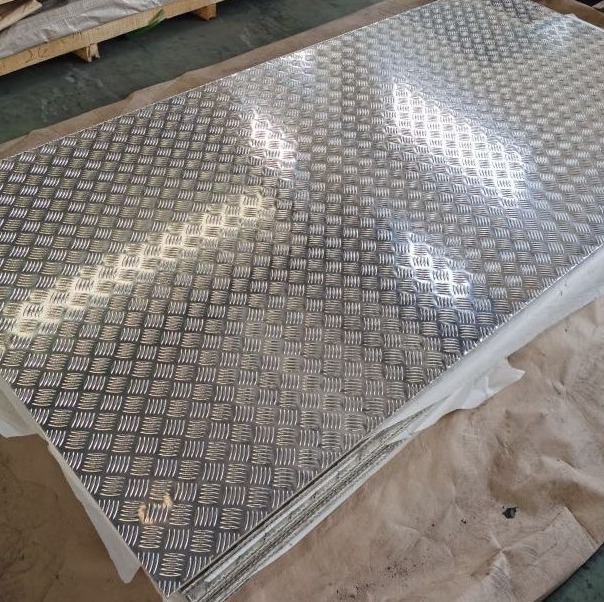

The 4×8 aluminum checker plate, also known as tread plate or diamond plate, is a versatile and durable material featuring a raised pattern that provides excellent traction and slip resistance. Measuring 4 feet by 8 feet (1219mm x 2438mm), this checker plate is widely used in various industries, including construction, transportation, and manufacturing, due to its lightweight nature, corrosion resistance, and ease of fabrication.

Product Characteristics

Slip-Resistant Surface

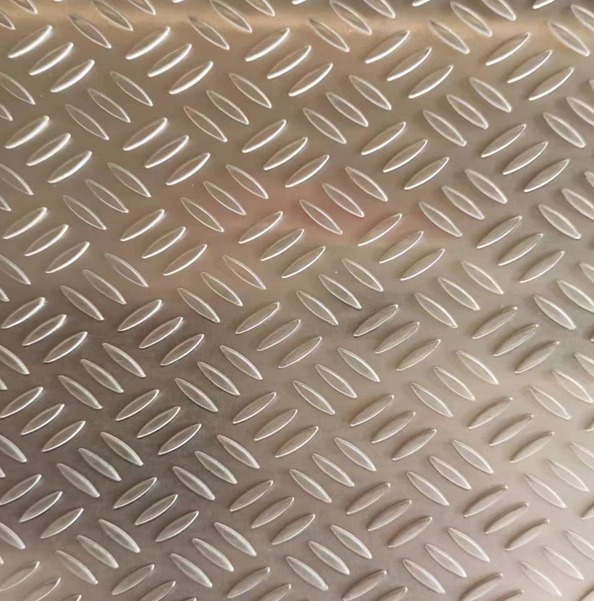

The distinctive raised pattern on the aluminum checker plate offers superior traction, making it an ideal choice for flooring, ramps, and stairways where safety and slip resistance are paramount.

Durability and Strength

Constructed from high-quality aluminum alloys, the 4×8 checker plate exhibits excellent strength and durability, capable of withstanding heavy loads and harsh environmental conditions while maintaining its structural integrity.

Lightweight

Despite its robustness, aluminum checker plate is remarkably lightweight, facilitating easy handling, installation, and transportation, which contributes to reduced overall project costs and increased efficiency.

Corrosion Resistance

Aluminum’s natural resistance to corrosion ensures longevity and low maintenance requirements, even when exposed to moisture, chemicals, and other corrosive elements, making it suitable for both indoor and outdoor applications.

Easy Fabrication

The material’s excellent formability allows for easy cutting, bending, welding, and machining, enabling seamless customization to meet specific project requirements and design specifications.

Aesthetic Appeal

The sleek and modern appearance of the aluminum checker plate enhances the visual appeal of any application, making it a popular choice for decorative purposes as well as functional uses.

Product Parameters

Thickness

• Standard Thicknesses:
  • 1/8 inch (3.175mm)
  • 3/16 inch (4.76mm)
  • 1/4 inch (6.35mm)
• Custom Thicknesses:
  • Available upon request to suit specific application needs.

Dimensions

• Length: 8 feet (2438mm)
• Width: 4 feet (1219mm)
• Custom Sizes:
  • Custom dimensions can be provided to accommodate unique project requirements.

Commonly Used Alloys and Tempers

• 3003-H22:
  • Good workability and moderate strength; ideal for general applications.
• 5052-H32:
  • Higher strength and excellent corrosion resistance; suitable for marine and industrial environments.

Chemical Composition

3003 Aluminum Alloy

• Aluminum (Al): 96.8% - 99%
• Manganese (Mn): 1.0% - 1.5%
• Copper (Cu): 0.05% - 0.20%
• Silicon (Si): 0.6% max
• Iron (Fe): 0.7% max
• Zinc (Zn): 0.10% max
• Other Elements: 0.05% max each, 0.15% total max

5052 Aluminum Alloy

• Aluminum (Al): 95.7% - 97.7%
• Magnesium (Mg): 2.2% - 2.8%
• Chromium (Cr): 0.15% - 0.35%
• Silicon (Si): 0.25% max
• Iron (Fe): 0.4% max
• Copper (Cu): 0.10% max
• Manganese (Mn): 0.10% max
• Zinc (Zn): 0.10% max
• Other Elements: 0.05% max each, 0.15% total max

Mechanical Properties

3003-H22

• Tensile Strength: 130 - 160 MPa
• Yield Strength: 90 MPa
• Elongation: 10% - 15%
• Hardness: 40 Brinell

5052-H32

• Tensile Strength: 215 - 265 MPa
• Yield Strength: 160 MPa
• Elongation: 12% - 18%
• Hardness: 60 Brinell

Applications

• Industrial Flooring: Provides a durable and safe walking surface in factories, warehouses, and workshops.
• Vehicle and Trailer Floors: Offers robust and lightweight flooring solutions for trucks, trailers, and emergency vehicles.
• Stair Treads and Ramps: Ensures secure footing and enhances safety in both commercial and residential settings.
• Toolboxes and Storage Solutions: Used for constructing strong and corrosion-resistant storage boxes and cabinets.
• Marine Applications: Suitable for boat decks and docks due to excellent resistance to saltwater corrosion.
• Architectural and Decorative Uses: Adds a modern and stylish touch to walls, ceilings, and furniture designs.
• Protective Wall Coverings: Shields walls in high-traffic areas from damage while providing an attractive finish.

Conclusion

The 4×8 aluminum checker plate is a highly adaptable material that combines functionality, durability, and aesthetic appeal. Its slip-resistant surface, coupled with lightweight and corrosion-resistant properties, makes it an excellent choice for a wide range of applications across various industries. With customizable options in thickness, alloy, and temper, this aluminum checker plate can be tailored to meet specific project demands, ensuring optimal performance and longevity.
